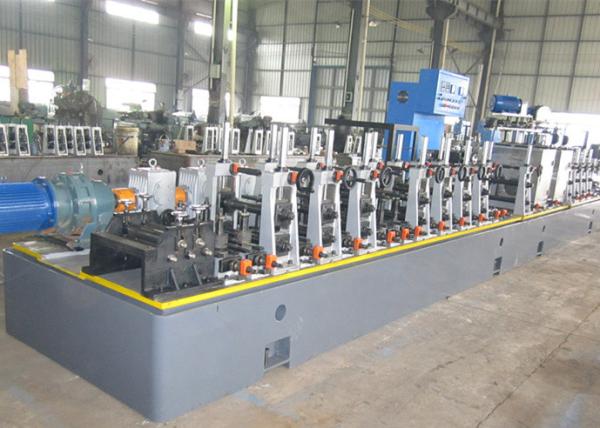

Carbon Steel ERW Pipe Machine 10-50mm Diameter 100m/min

Name: Carbon Steel ERW Pipe Machine 1050mm Diameter 100mmin
Brand: Tengtian
Price: 100000 USD

Quality Carbon Steel ERW Pipe Machine 10-50mm Diameter 100m/min for sale

Brand Name : Tengtian

Model Number : HG50

Certification : CE ISO

Place of Origin : HEBEI,CHINA

MOQ : 1 set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 200 set per year

Delivery Time : two month

Packaging Details : packed in seaworthy material

Price : $100000 to $1 million

material : carbon steel

product speed : Max 100m/min

pipe diameter : 10-50mm

pipe thickness : 1.0-2.5mm

type of welding : ERW welder

special require : can design according to the customer

Contact Now

Adjustable Size Steel Pipe Making Machine Large Size For 50mm Diameter Pipe

The Carbon Steel Tube Application:

the steel tube can use in many different part,such as escalator,elevator,door&rail,stair armrest

2. electronic boiler &solar energy equipment 3.airport,solar energy equipment 4. chemical process vessels,piping and heat exchangers.

Product Process:

material(carbon steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→TIG welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

The Basic Parameters:

stands of forming mill	7
stands of sizing mill	5
shaft material	40CrMo
round pipe diameter	10-50mm
Round pipe thickness	1.0-2.5mm
square pipe size	8×8-40×40mm
square pipe thickness	1.5-2.0mm

ERW Tube Mill Other Model

No.	Model	Pipe Size	Thickness	Speed(m/min)	Capacity(KW)	HF(KW)	Area(LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24

This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
